Model: AutoMet 250?
No.: 49-7257
Style: Semi-Auto
Control Panel：Membrane
Platen Count:?Single
Auto Dispensing:?No
The AutoMet line of grinder and polisher machines are built for demanding production lab environments. The AutoMet 250 is designed for manual or automated sample preparation. Simplicity is balanced with versatility to accommodate many applications. The AutoMet 250 is built with durable construction for reliability in high use environments, unique quick cleaning features, and plenty of enhancements for user friendly operation.
?
Specifications:
| Grinder-polisher | |
| Machine Power | 100-240VAC, 50/60Hz, 1 phase |
| Motor Power | 1Hp [750W] |
| Platen Diameter | 8in [203mm], 10in [254mm] |
| Platen Wheel Speed | 10-500rpm in 10rpm increments |
| Wheel Direction | Clockwise or Counter-Clockwise |
| Water Supply Hose | 0.25in [6mm] OD tube |
| Water Supply Pressure | 40-100psi [25-60bar] |
| Base Power Usage | 1.1kW, 9.6/4.8A @ 115/230VAC |
| Base & Head Power Usage | 1.73kW, 15/7.5 A @ 115/230VAC |
| Membrane Control Panel for 250 | Three 3-digit LED displays, 14 status LED’s; Units: Metric or Imperial |
| Base Sound Rating (1.5ft, 0.5m)
distance no load |
59.5dB @ 100rpm |
| Base & Head Sound Rating | 61.5dB @ 100/30rpm |
| Weight | 170lbs [77kg] |
| Compliance | CE; EC applicable directives |
| Head | |
| Machine Power | 0.156Hp [116W] |
| Speed | 30-60rpm in 10rpm increments |
| Central Specimen Force | 5-60 lbs [20-260N] |
| Single Specimen Force | 1-10 lbs [5-45N] |
| Central Force Specimen Capacity | 1in, 1.25in, 1.5in, 25mm, 30mm, 40mm and large or irregular specimens |
| Single Force Specimen Capacity | 1in, 1.25in, 1.5in, 25mm, 30mm, 40mm |
| Air Supply Hose | 0.25in [6mm] OD tube |
| Air Supply Pressure | 35psi [2.4bar] |
| Power Usage | 630W, 5.5/2.7A @ 115/230VAC |
| Weight | 70 lbs [32kg] |
| Compliance | CE; EC applicable directives |
]]>
Model: AutoMet 250 Pro
No.: 49-7258
Style: Semi-Auto
Control Panel：Touchscreen
Platen Count:?Single
Auto Dispensing:Yes
The AutoMet line of grinder and polisher machines are built for demanding production lab environments. The AutoMet 250 Pro is complete with color touchscreen controls and is designed for manual or automated sample preparation. Simplicity is balanced with versatility to accommodate many applications. The AutoMet 250 Pro is built with durable construction for reliability in high use environments, unique quick cleaning features, and plenty of enhancements for user friendly operation.
Machine can be equipped with automated dispenser programmability for additional cost savings and highly reproducible results.
Specifications:
| Grinder-polisher | |
| Machine Power | 100-240VAC, 50/60Hz, 1 phase |
| Motor Power | 1Hp [750W] |
| Platen Diameter | 8in [203mm], 10in [254mm] |
| Platen Wheel Speed | 10-500rpm in 10rpm increments |
| Wheel Direction | Clockwise or Counter-Clockwise |
| Water Supply Hose | 0.25in [6mm] OD tube |
| Water Supply Pressure | 40-100psi [25-60bar] |
| Base Power Usage | 1.1kW, 9.6/4.8A @ 115/230VAC |
| Base & Head Power Usage | 1.73kW, 15/7.5 A @ 115/230VAC |
| Touchscreen Control Panel for 250 Pro | Full color LCD Screen; 7in [175mm] diagonal; NEMA4 (IP65) water resistant |
| Base Sound Rating (1.5ft, 0.5m) distance no load | 59.5dB @ 100rpm |
| Base & Head Sound Rating | 61.5dB @ 100/30rpm |
| Weight | 170lbs [77kg] |
| Compliance | CE; EC applicable directives |
| Head | |
| Machine Power | 0.156Hp [116W] |
| Speed | 30-60rpm in 10rpm increments |
| Central Specimen Force | 5-60 lbs [20-260N] |
| Single Specimen Force | 1-10 lbs [5-45N] |
| Central Force Specimen Capacity | 1in, 1.25in, 1.5in, 25mm, 30mm, 40mm and large or irregular specimens |
| Single Force Specimen Capacity | 1in, 1.25in, 1.5in, 25mm, 30mm, 40mm |
| Air Supply Hose | 0.25in [6mm] OD tube |
| Air Supply Pressure | 35psi [2.4bar] |
| Power Usage | 630W, 5.5/2.7A @ 115/230VAC |
| Weight | 70 lbs [32kg] |
| Compliance | CE; EC applicable directives |
]]>

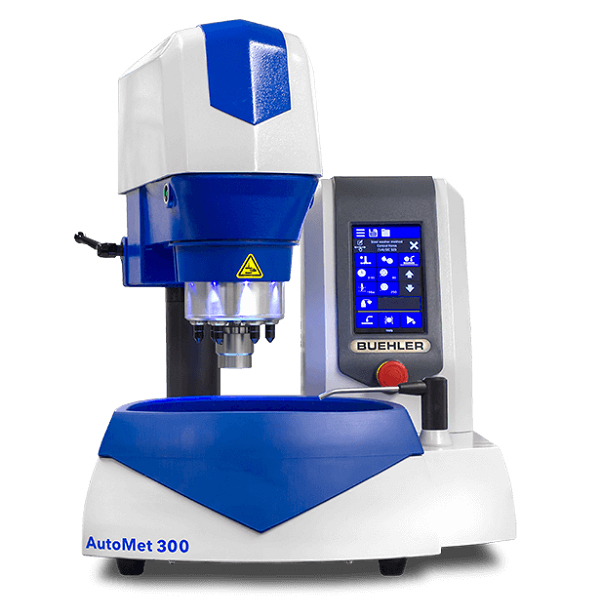

Model: AutoMet 300 Pro?
No.: 49-7268
Style: Semi-Auto
Control Panel：Touchscreen
Platen Count:?Single
Auto Dispensing:?Yes
The AutoMet line of grinder and polisher machines are built for demanding production lab environments. The AutoMet 250 is designed for manual or automated sample preparation. Simplicity is balanced with versatility to accommodate many applications. The AutoMet 250 is built with durable construction for reliability in high use environments, unique quick cleaning features, and plenty of enhancements for user friendly operation.
?
Specifications:
| Grinder-polisher | |
| Platen Diameter | 12in [305mm] |
| Platen Wheel Speed | 50-400rpm in 10rpm increments |
| Wheel Direction | Clockwise or Counter-Clockwise |
| Water Supply Hose | 0.25in [6mm] OD tube |
| Water Supply Pressure | 40-100psi [25-60bar] |
| Base Power Usage | 2.3kW, 10A @ 230VAC |
| Base & Head Power Usage | 3.6kW, 15 A @ 230VAC |
| Touchscreen Control Panel for 300 Pro | Full color LCD Screen; 7in [175mm] diagonal; NEMA4 (IP65) water resistant |
| Base Sound Rating (1.5ft, 0.5m)
distance no load |
51.5dB @ 100rpm |
| Base & Head Sound Rating | 64.5dB @ 100/60rpm |
| Weight | 219 lbs [99kg] |
| Compliance | CE; EC applicable directives |
| Head | |
| Machine Power | 0.75Hp [560W] |
| Speed | 60-150rpm in 10rpm increments |
| Central Specimen Force | 10-120 lbs [40-535N] |
| Single Specimen Force | 1-20 lbs [5-90N] |
| Central Force Specimen Capacity | 1in, 1.25in, 1.5in, 2in, 25mm, 30mm, 40mm, 50mm and large or irregular specimens |
| Single Force Specimen Capacity | 1in, 1.25in, 1.5in, 2in, 25mm, 30mm, 40mm, 50mm |
| Air Supply Hose | 0.25in [6mm] OD tube |
| Air Supply Pressure | 35psi [2.4bar] |
| Power Usage | 1.3kW, 5.65 A @ 230VAC |
| Weight | 92 lbs [42kg] |
| Compliance | CE; EC applicable directives |
]]>
EcoMet 30 Twin Auto 雙盤自動磨拋機為日常磨拋提供了簡便的自動操作。友好的觸摸屏界面屏幕上可以顯示所有經常使用的功能，可以大大節省因復雜操作所浪費的時間。EcoMet 30的一鍵清洗功能為每步都需要更換磨拋工藝的客戶節省了時間。2500小時的耐久性測試證明其可以靈活兼容8in[203mm]/10in[254mm]/12in[305mm]磨盤。
簡化常規打磨和拋光
- 直觀的觸摸屏界面
- 簡易明了的菜單
- 當前狀態一目了然
易于清洗-用戶可選擇自動甩干功能
- 磨盤可以輕松拆卸
- 大型直接排水系統
人性化的設計理念
- 觸摸屏的位置和角度可以讓不同身高的用戶一目了然
- 鑄鋁設計增加了產品的耐用性與穩定性
技術參數
| 技術規格 | EcoMet 30 Twin Auto 雙盤自動研磨拋光機 |
| 機器電源 | 100-240VAC,50/60Hz,單相 |
| 電機功率 | 440W |
| 磨盤直徑 | 8in [203mm], 10in [254mm], 12in [305mm] |
| 磨盤轉速 | 50-500rpm，調整增量 50rpm |
| 旋轉方向 | 磨盤：逆時針 動力頭：順時針/逆時針 |
| 底座和動力頭 用電量 | 1kW, 8.8/4.3A @115/230VAC |
| 觸摸屏 控制面板 | 全彩色 LCD 屏幕，對角線尺寸 7in [175mm] |
| 程序存儲 | 可存儲 5 個帶密碼保護的程序 |
| 底座和動力頭 噪音 | 65dB @500rpm/200rpm |
| 動力頭電機功率 | 300W |
| 供水壓力 | 40-116psi [2.7-8bar] |
| 動力頭轉速 | 30-200rpm，調整增量 10rpm |
| 中力加載 | 5-40lbs[25-200N] |
| 單點力加載 | 1-10lbs[5-40N] |
| 試樣尺寸，中力模式 | 1in,1.25in,1.5in,25mm,30mm,40mm |
| 試樣尺寸，單點力模式 | 1in,1.25in,1.5in,25mm,30mm,40mm |
| 壓縮空氣管 | 外徑 0.25in [6mm] |
| 壓縮空氣壓力 | ≥0.4Mpa |
| 重量 | 231.5 lbs (105kg) |
| 遵循標準 | CE |
]]>
符合人機工程學設計的手動拋光
- 手可倚靠的大平面和按照人機工程學設計的磨盤高度使得磨拋?zhàn)兊酶?jiǎn)單。
- 用戶能節省時間并提高磨拋樣品的質量
易于清潔
- 方便拆卸的磨盤有助于快速深層清潔，防止交叉污染。
- 大型直接排水系統可以超大限度地減少碎屑堆積并節省清潔時間。
技術規格
| 技術規格 | EcoMet 30 雙盤手動研磨拋光機 |
| 機器電源 | 100-240VAC,50/60Hz,單相 |
| 電機功率 | 440W |
| 磨盤直徑 | 8in [203mm], 10in [254mm], 12in [305mm] |
| 磨盤轉速 | 50-500rpm 無級變速調節 |
| 磨盤旋轉 方向 | 逆時針 |
| 供水壓力 | 40-116psi [2.7-8bar] |
| 機器用電量 | 0.97kW,8.5/4.1A @115/230VAC |
| 薄膜控制面板 | 旋鈕開關 |
| 底座噪音 | 65dB @ 500rpm |
| 重量 | 154lbs [70kg] |
| 遵循標準 | CE |
]]>
EcoMet 30 Auto 單盤自動磨拋機為日常磨拋提供了簡便的自動操作。友好的觸摸屏界面屏幕上可以顯示所有經常使用的功能，可以大大節省因復雜操作所浪費的時間。EcoMet 30的一鍵清洗功能為每步都需要更換磨拋工藝的客戶節省了時間。2500小時的耐久性測試證明其可以靈活兼容8in[203mm]/10in[254mm]/12in[305mm]磨盤。
簡化常規打磨和拋光
- 直觀的觸摸屏界面
- 簡易明了的菜單
- 當前狀態一目了然
易于清洗-用戶可選擇自動甩干功能
- 磨盤可以輕松拆卸
- 大型直接排水系統
人性化的設計理念
- 觸摸屏的位置和角度可以讓不同身高的用戶一目了然
- 鑄鋁設計增加了產品的耐用性與穩定性
技術參數
| 技術規格 | EcoMet 30 Auto 單盤自動研磨拋光機 | |
|---|---|---|
| 機器電源 | 100-240VAC,50/60Hz,單相 | |
| 電機功率 | 440W | |
| 磨盤直徑 | 8in [203mm], 10in [254mm], 12in [305mm] | |
| 磨盤轉速 | 50-500rpm，調整增量 50rpm | |
| 旋轉方向 | 磨盤：逆時針 動力頭：順時針/逆時針 |
|
| 底座和動力頭 用電量 | 1kW, 8.8/4.3A @115/230VAC | |
| 觸摸屏 控制面板 | 全彩色 LCD 屏幕，對角線尺寸 7in [175mm] | |
| 底座和動力頭 噪音 | 65dB @500rpm/200rpm | |
| 動力頭電機功率 | 300W | |
| 供水壓力 | 40-116psi [2.7-8bar] | |
| 動力頭轉速 | 30-200rpm，調整增量 10rpm | |
| 中力加載 | 5-40lbs[25-200N] | |
| 單點力加載 | 1-10lbs[5-40N] | |
| 試樣尺寸，中力模式 | 1in,1.25in,1.5in,25mm,30mm,40mm | |
| 試樣尺寸，單點力模式 | 1in,1.25in,1.5in,25mm,30mm,40mm | |
| 壓縮空氣管 | 外徑 0.25in [6mm] | |
| 壓縮空氣壓力 | ≥0.4Mpa | |
| 重量 | 165 lbs (75kg) | |
| 遵循標準 | CE | |
]]>
符合人機工程學設計的手動拋光
- 手可倚靠的大平面和按照人機工程學設計的磨盤高度使得磨拋?zhàn)兊酶?jiǎn)單。
- 用戶能節省時間并提高磨拋樣品的質量
易于清潔
- 方便拆卸的磨盤有助于快速深層清潔，防止交叉污染。
- 大型直接排水系統可以很大限度地減少碎屑堆積并節省清潔時間。
技術規格
| 技術規格 | EcoMet 30 單盤手動研磨拋光機 |
| 機器電源 | 100-240VAC,50/60Hz,單相 |
| 電機功率 | 300W |
| 磨盤直徑 | 8in [203mm], 10in [254mm], 12in [305mm] |
| 磨盤轉速 | 50-500rpm 無級變速調節 |
| 磨盤旋轉 方向 | 逆時針 |
| 供水壓力 | 40-116psi [2.7-8bar] |
| 機器用電量 | 0.64kW,5.6/2.78A @115/230VAC |
| 薄膜控制面板 | 旋鈕開關 |
| 底座噪音 | 65dB @ 500rpm |
| 重量 | 101.5lbs [46kg] |
| 遵循標準 | CE |
]]>
使用簡易
- 簡單的操作適用于低量的應用
節省空間、降低成本
- 使用2.875in [73mm]的砂紙和拋光布
清潔更容易，節省時間
- 可伸縮的水管、完成沖洗
技術規格
| 技術規格 | MiniMet 1000 |
| 尺寸 | 7in W x 16in D x 8in H (180mm x 400mm x 200mm) |
| 電壓 | 85 – 264 Volts / 50 – 60Hz / 1 相 |
| 重量 | 25lbs (11kg) |
| 聲音 | 噪音 無 負載，距離 1 米高，一米遠處檢測 |
結果
- 振動拋光機可以在準備好材料后去除殘留的微小變形，使材料表面無應力，無需使用電解拋光機要求的危害性電解質。
- 振動拋光的機械和化學-機械拋光過程，可使樣品表面損傷層很小，同時保證樣品表面更加平整。
?
表面光潔度高
- 結合使用VibroMet 2 振動拋光機和MasterMet? 2 碳化硅懸浮液對一個試樣進 行機械拋光，所得到的表面光潔程度可適合電子背向散射衍射（EBSD）。
- 振動拋光可以保證多層不同硬度的涂/鍍層樣品表面獲得制備結果。
技術參數
- 可以方便快速制備厚度5-10微米超薄的巖礦樣品
- 同時制備18個鑲嵌樣品或數個超大的不鑲嵌的零件實物
